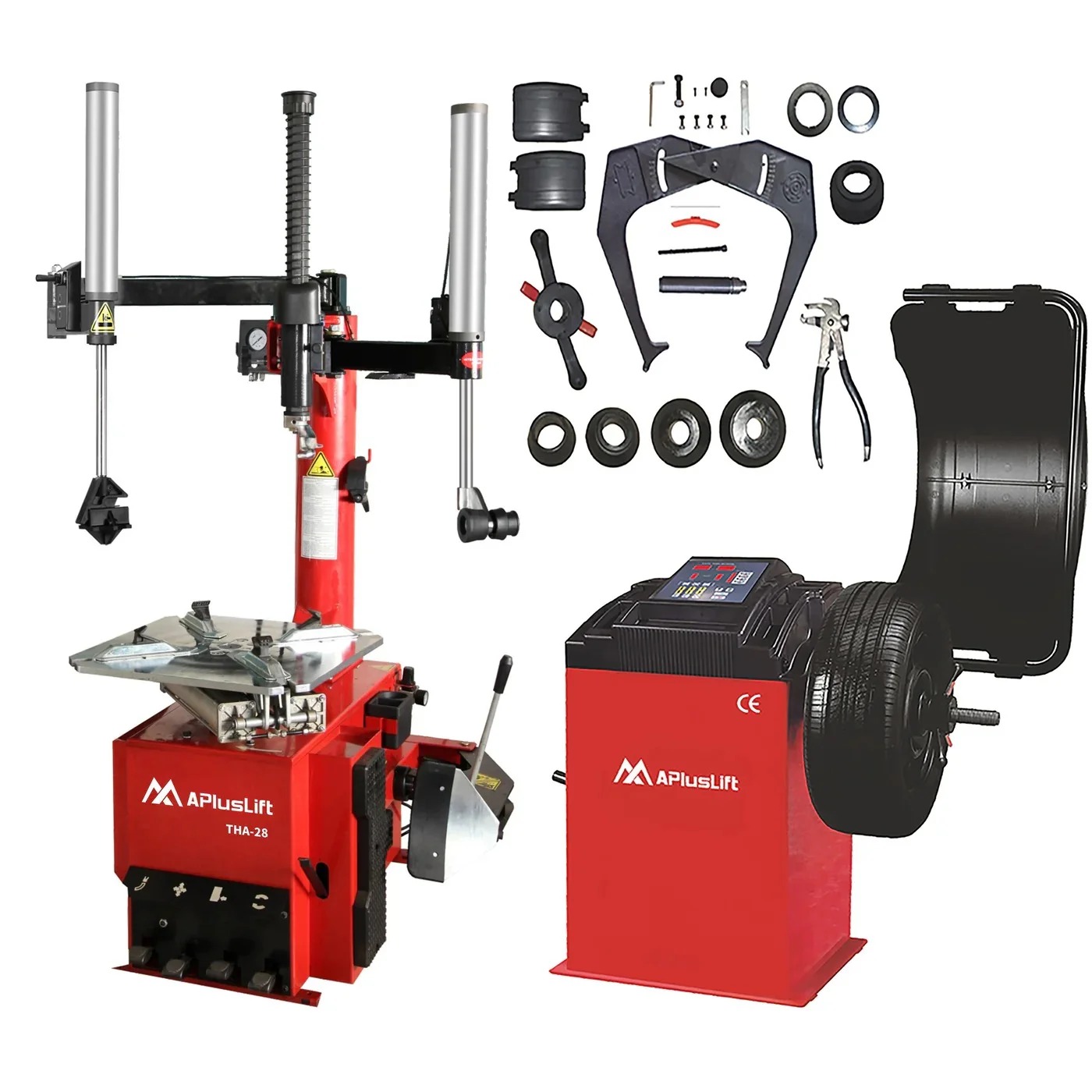

THA-28 Tire Wheel Changer and WBS-500 Tire Wheel Balancer Combo

All Tire Machines

• Three Year Warranty!

• CE Certificate

• Rim Clamping 12″-26″ (Outside), 14″-28″ (Inside)

• Maximum Tire Diameter 45″

• Bead Blaster Included, Bead Air Pressure 120-145 psi, Bead Blaster Air Tank 6.34 gallon

• Wheel Balancer Includes Wheel Hood Protector

Free shipping to commercial address (in a business zone) with forklift (or similar) on-site, or free pickup at nearby terminal. Residential addresses with liftgate (curbside only; no placement inside a building or backyard): $150. See shipping policy below for limited access/remote/high-cost areas.

Please Email or Text Us for Any Technical Questions. Our Technician Will Get Back to You on the Same Day.

Specifications and Features

• THA-28 Manual
• WBS-500 Manual

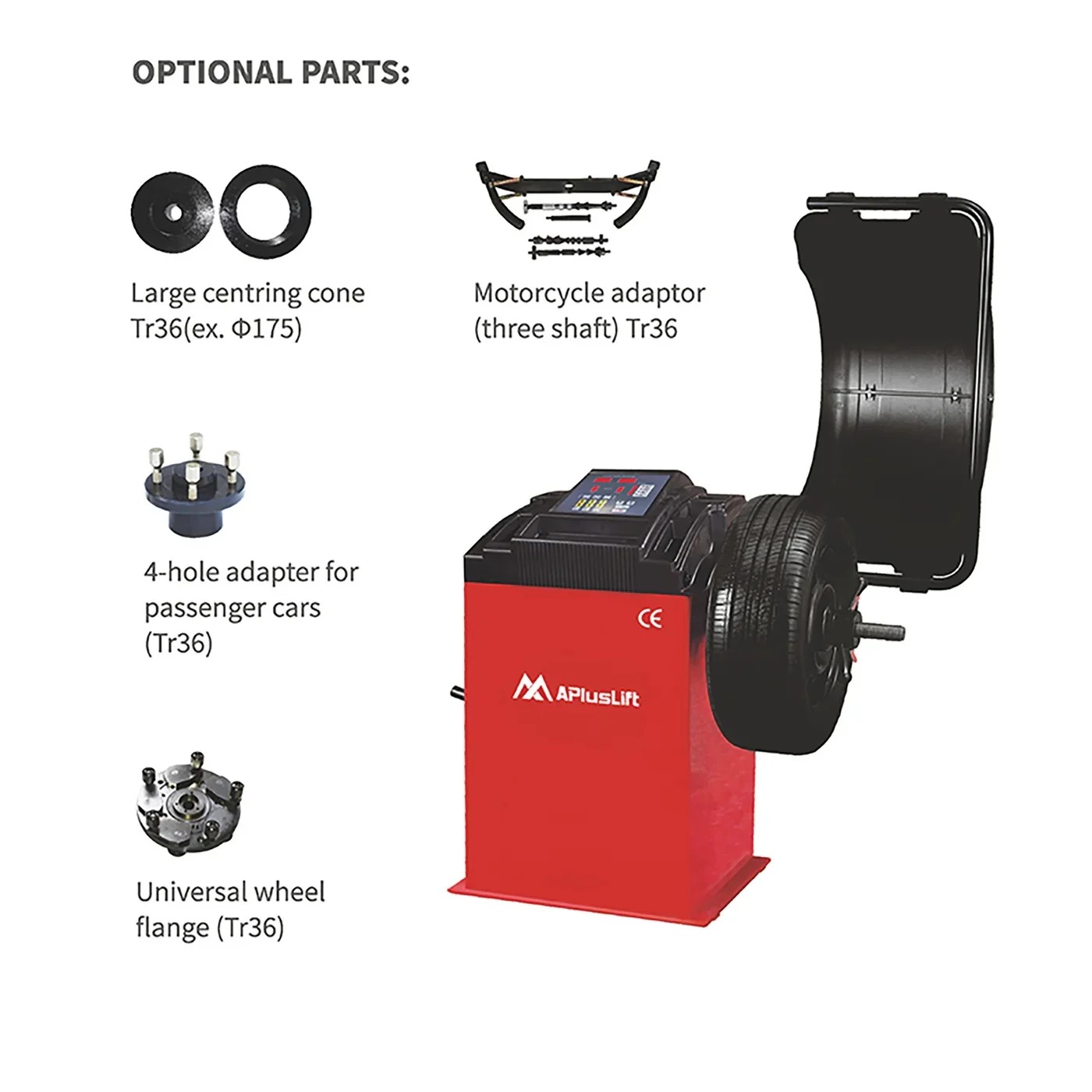

• WBS-500 Motorcycle Adapter Manual

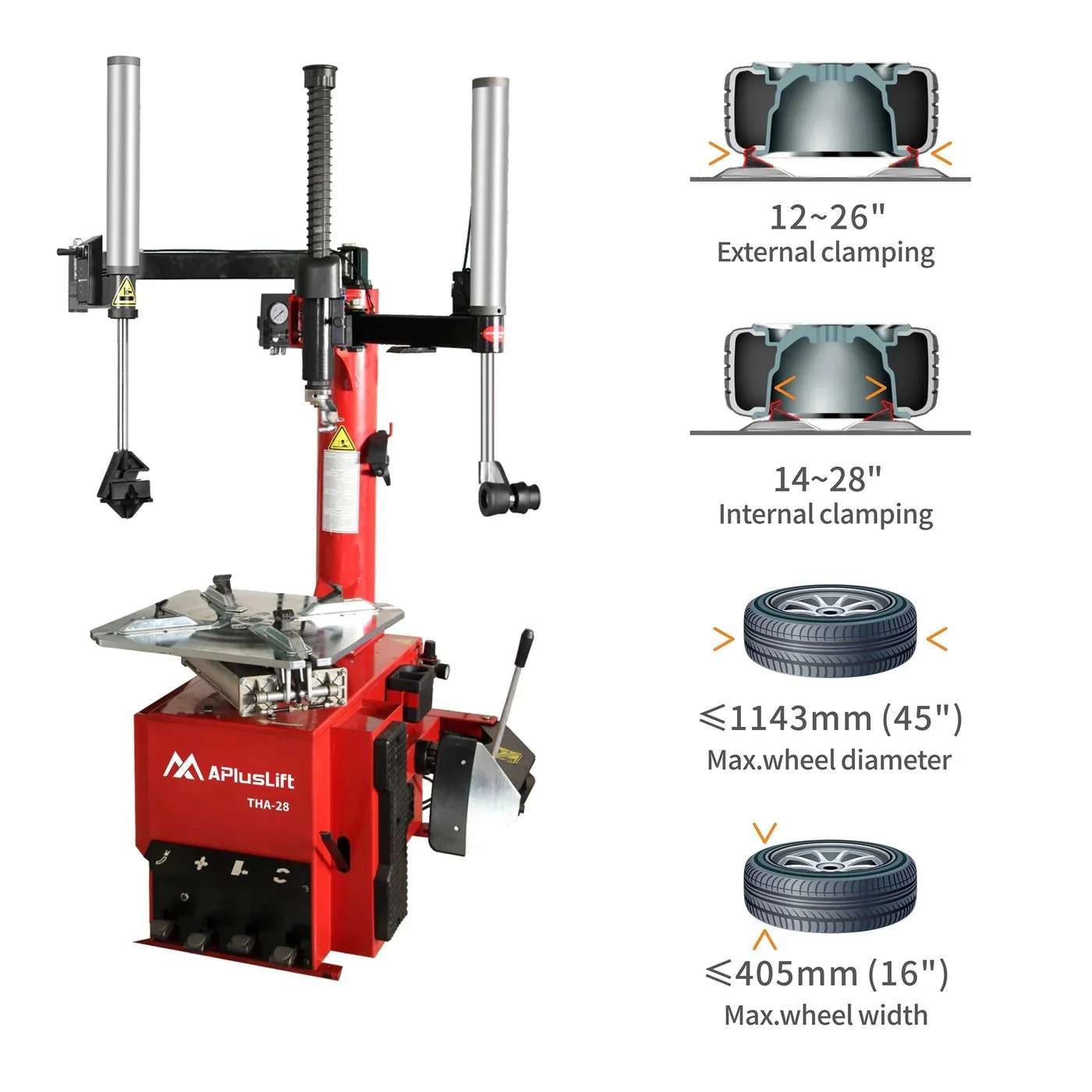

• THA-28
• CE Certificate
• Rim Clamping Outside 12″-26″
• Rim Clamping Inside 14″-28″ (7″-28″ with Motorcycle/ATV Adapters)
• Maximum Tire Diameter 45″
• Maximum Tire Width 16″

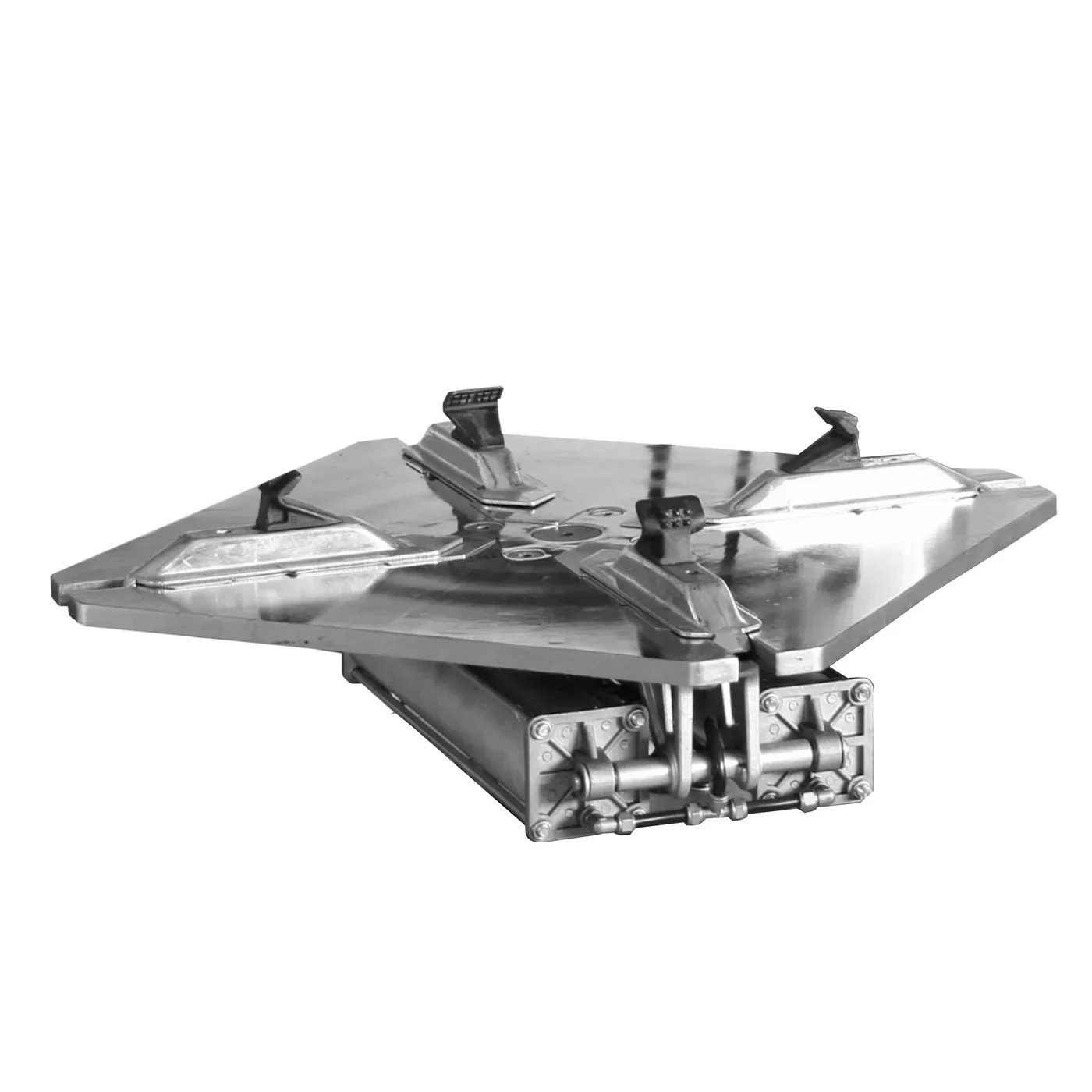

• Central Turntable with 26” Clamping Size
• Rugged And Durable One-Piece Casting Jaws

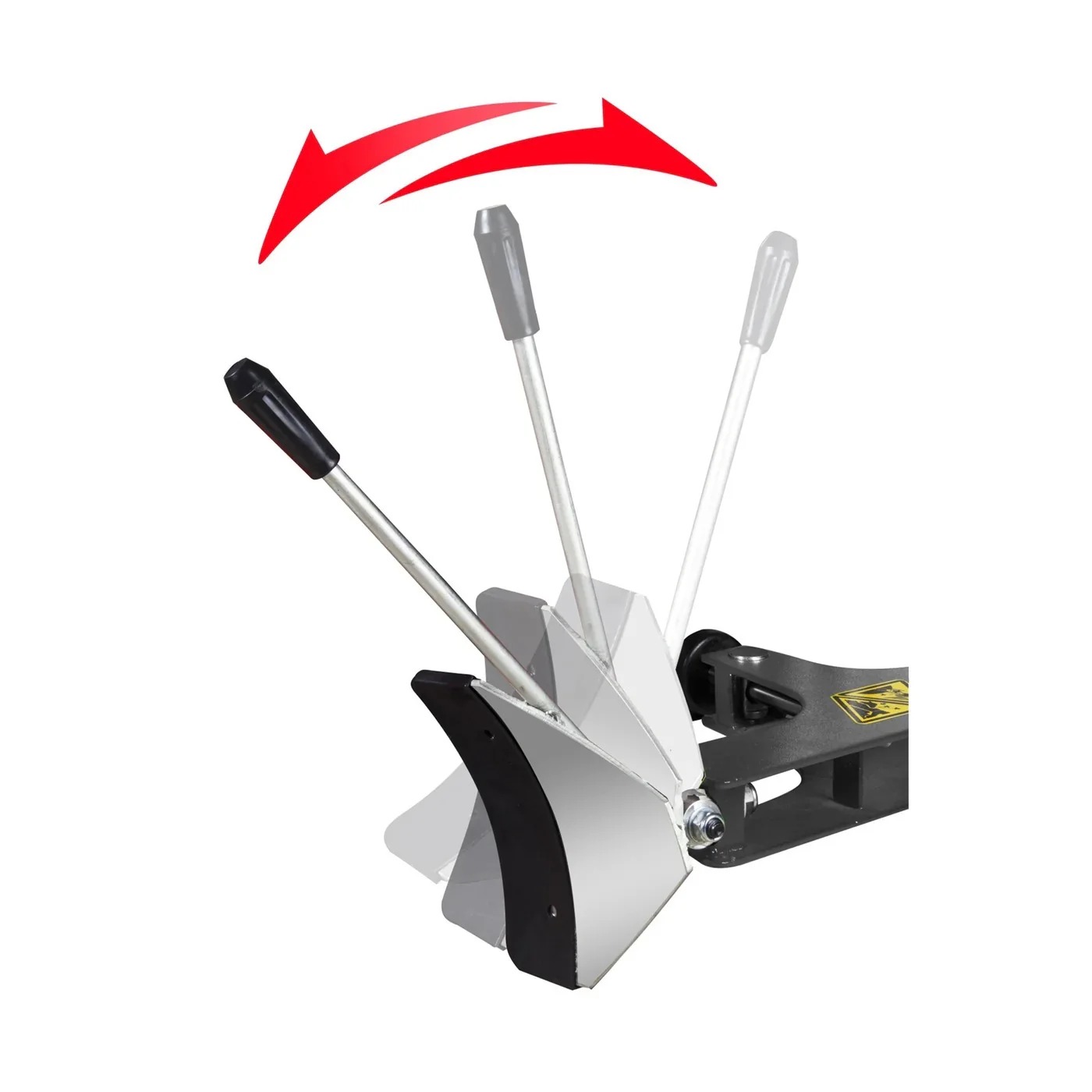

• Adjustable Pressing Shovel
• Bead Break Force 5600LB Pneumatic Piston
• Operating Pressure 120psi (8 Bar)
• Bead Blaster Operating Pressure 120-145 psi (8-10 Bar)
• Bead Blaster Air Tank 6.34 gallon(24 L)
• Voltage 110V Single Phase
• Plug Included
• Noise Level Less Than 60dB
• Red Color Powder Coat Finish
• Machine Body Size: 15 19/32″ x 34 7/8″ x 20 23/32″
• Shipping Weight: 700LB
• Shipping Package size: 45″ x 36″ x 43″
• *Rim Dimensions Measured on Iron Wheel Rims*

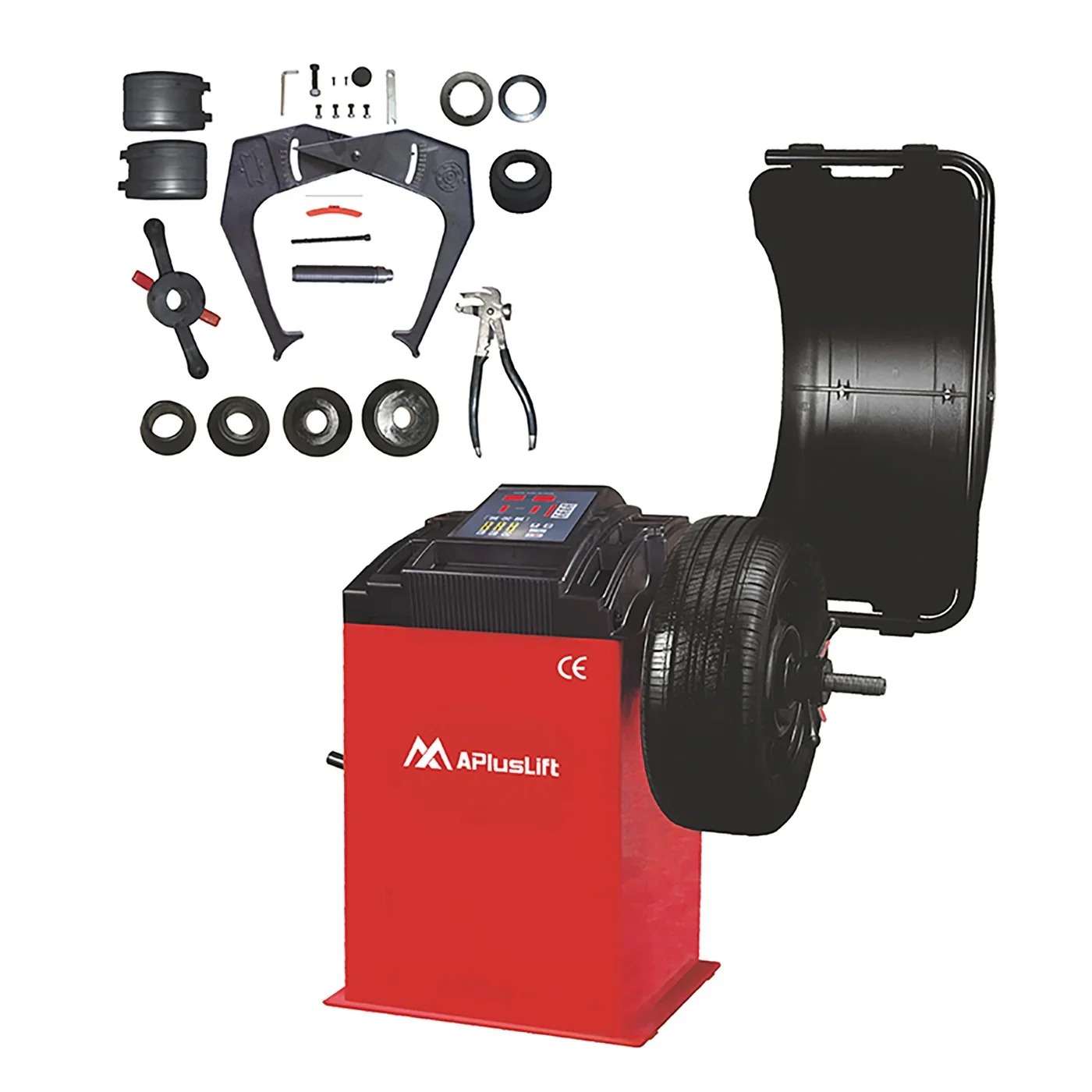

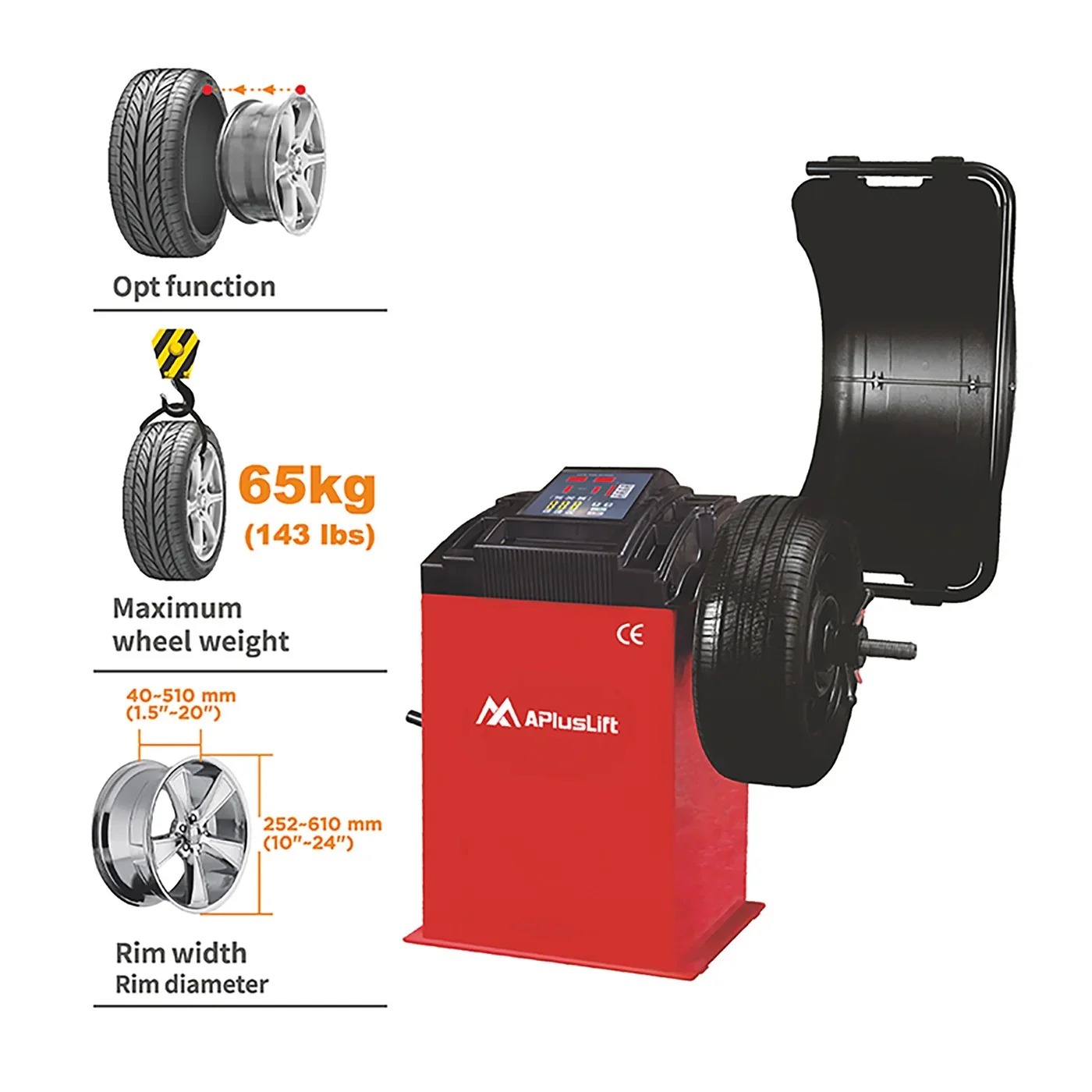

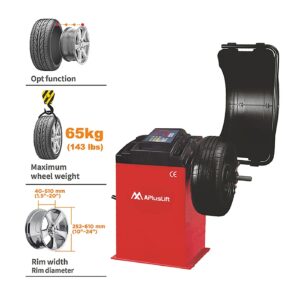

• WBS-500
• CE Certificate
• Rim Diameter 10″-24″
• Rim Width 1.5″-20″
• Maximum Tire Diameter 39″
• Maximum Tire Width 19.5″
• Maximum Wheel Weight 143LB
• Cycle Time 8 Seconds
• Voltage 110V Single Phase
• Plug Included
• Balancing Accuracy: -1g to +1g

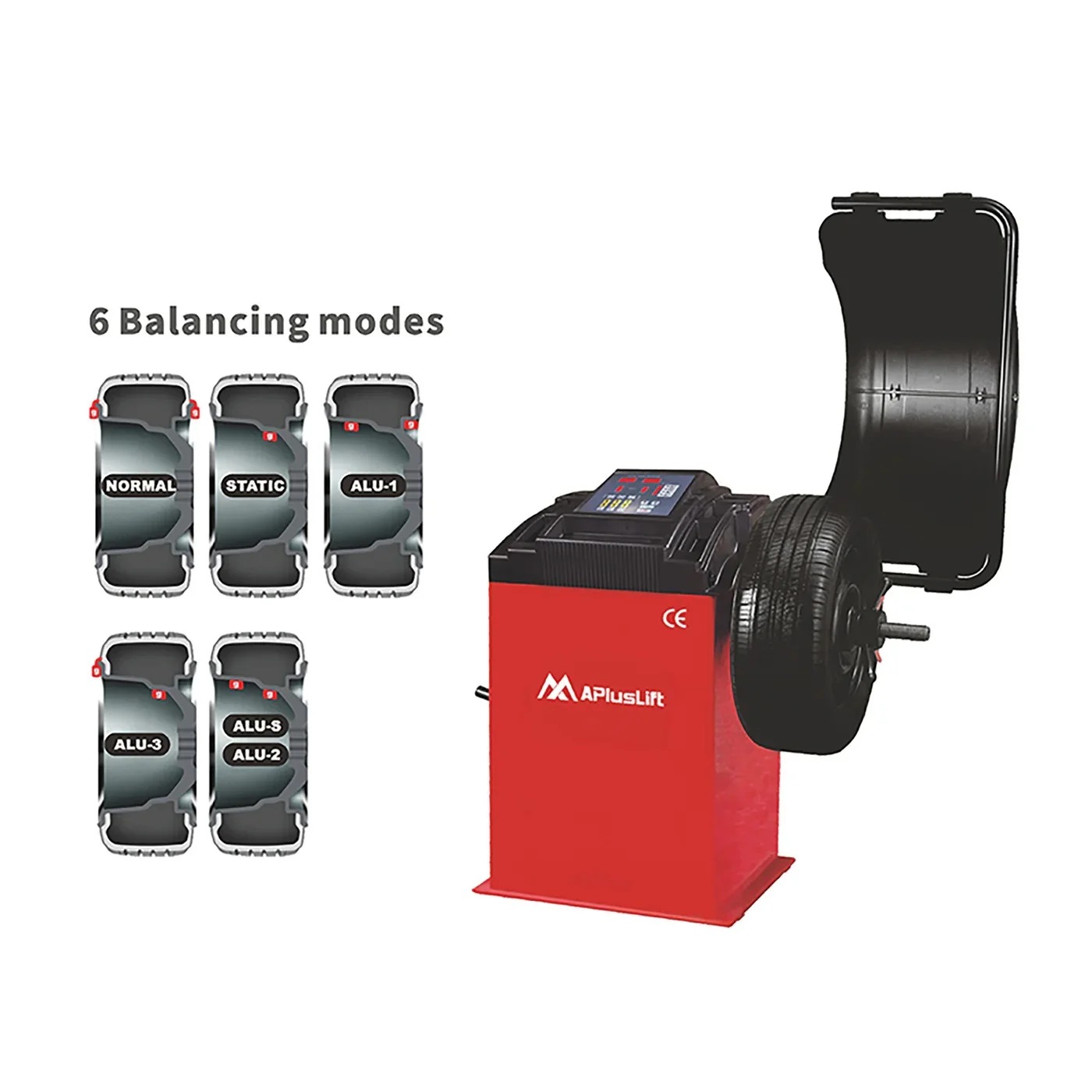

• Normal Mode, Static Mode, ALU 1-3 Mode, ALU-S Mode
• Intelligent Self-Calibration
• Fault Self-Diagnosis And Detection Function
• 6 LED Display
• Noise Level Less Than 70dB
• Red Color Powder Coat Finish
• Machine Body Size(with protector): 43 3/16″ x 29 1/32″ x 59 1/16″
• Shipping Weight: 250LB
• Shipping Package Size: 36″ x 30″ x 48″
